Durable housing, Incoloy 825 element
Aqua Mini has a housing in durable thermoplastic and a heating element of Incoloy 825.
New from Pahlén
A new spa heater. Yours to control.
Pahlén Aqua Mini is a compact spa heater, built in Sweden. It replaces the control pack and its built-in heater, and opens your spa to your own system and your own app.
Swedish manufacturing since 1967
Premium pool and spa equipment
Test it in your own spa first

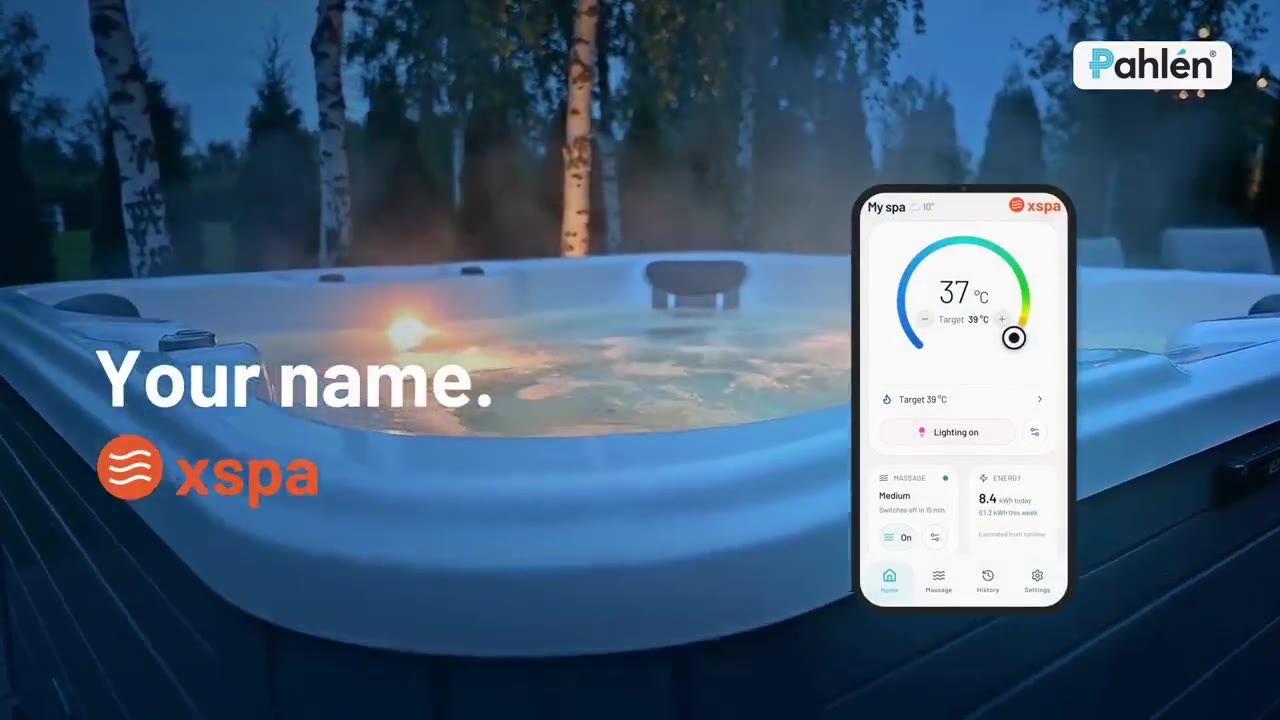

The idea in one film
Swap the heater, keep your choice of components, and put your own app in your customer's hand.

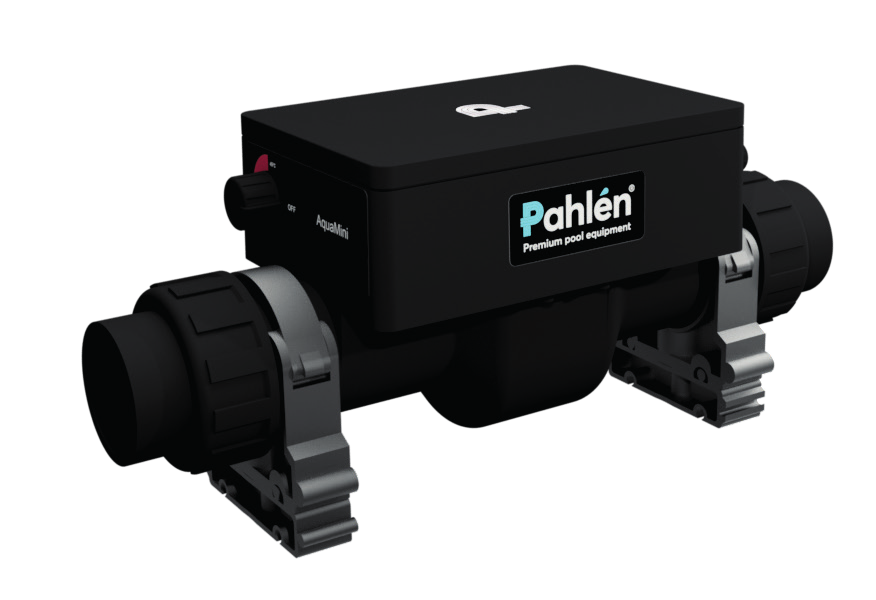

Pahlén Aqua Mini
Aqua Mini is a small and compact electric heater specially adapted for spas and smaller pools, available in the capacities 2 kW and 3 kW.
Safety as standard
Thermostat, overheat protection and a new smart magnetic flow guard as standard — for safe operation even at low flows.
Compact and flexible to mount
The compact size makes Aqua Mini easy to mount in tight spaces, and you can choose between placing it horizontally or vertically.
IP class 45
Aqua Mini is rated IP class 45.
Union connections included
Union connections for Ø 50 mm pipes are included.
Two-year warranty
On everything Pahlén supplies.
Aqua Mini
| Specification | 2 kW | 3 kW |
|---|---|---|
| Capacity | 2 kW | 3 kW |
| Article number | 141661 | 141662 |
| Max. flow | 300 l/min | 300 l/min |
| Min. flow | 50 l/min | 50 l/min |
| Voltage | 230V, 1-phase | 230V, 1-phase |
| Max. pressure | 2 bar | 2 bar |
| IP class | 45 | 45 |
A heater that leaves the choice to you
Aqua Mini is built to be controlled by the system you choose. Nothing inside it ties it to one control system.
That matters more than it sounds. In most spas the heater sits inside the control pack, and the pack decides more than the temperature: which pumps are supported, which app your customer gets, and whose name is on it.
Take the heater out of the pack and the choice is yours. Choose each component on what it does, not on what the control system allows.
What that opens up: an app under your own brand that controls the heater and the rest of the spa — whatever equipment you have in it.
And an app that ties it together
The app doesn't run your spa. Each component does its own job, with its own safety, exactly as it does today. The app reads them, shows them in one place, and lets your customer change things from anywhere.
It works with whatever you chose.
What the owner controls
- Temperature
- Set and hold it. See it from anywhere.
- Massage
- On and off, three speeds and presets where the pump allows it.
- Lighting
- On, off and full colour.
- Schedules
- Warm for the evening, lower it while away.
- Status
- Whether everything is running as it should.
- Alerts
- A message when something needs attention.
A live demo of the app. Yours carries your name and your colours.
Your brand
The app carries your name and your colours. Your customer never sees anyone else.
Nothing else has to change
The app reads the equipment already in the spa.
Stand apart from the shelf
Most spas ship with the same controller and the same app. Yours would not.
See every spa you have delivered
The app is what your customer sees. The fleet view is what you see.
Your service team logs in
Read any spa remotely — temperature, runtime, faults. Answer the question before anyone drives out.
Alerts before the customer calls
A fault reaches you at the same time as the owner. Often before they have noticed it.
Patterns across the fleet
See the same component failing across a delivery batch, before the warranty claims arrive.
Reports on your own models
How your spas actually behave in the field, model by model.
Or take the rest from Pahlén too
If it suits you. Every part is optional — the app reads what you already use just as well.
Circulation pump
Keeps the water filtered and the heat moving
Massage pump
Variable speed — three speeds and presets in the app
Massage jets
Stainless steel
Lighting
RGB, colour from the app
UV treatment
Titanium
Or keep what you already use — the app reads both.
Built in Sweden since 1967.

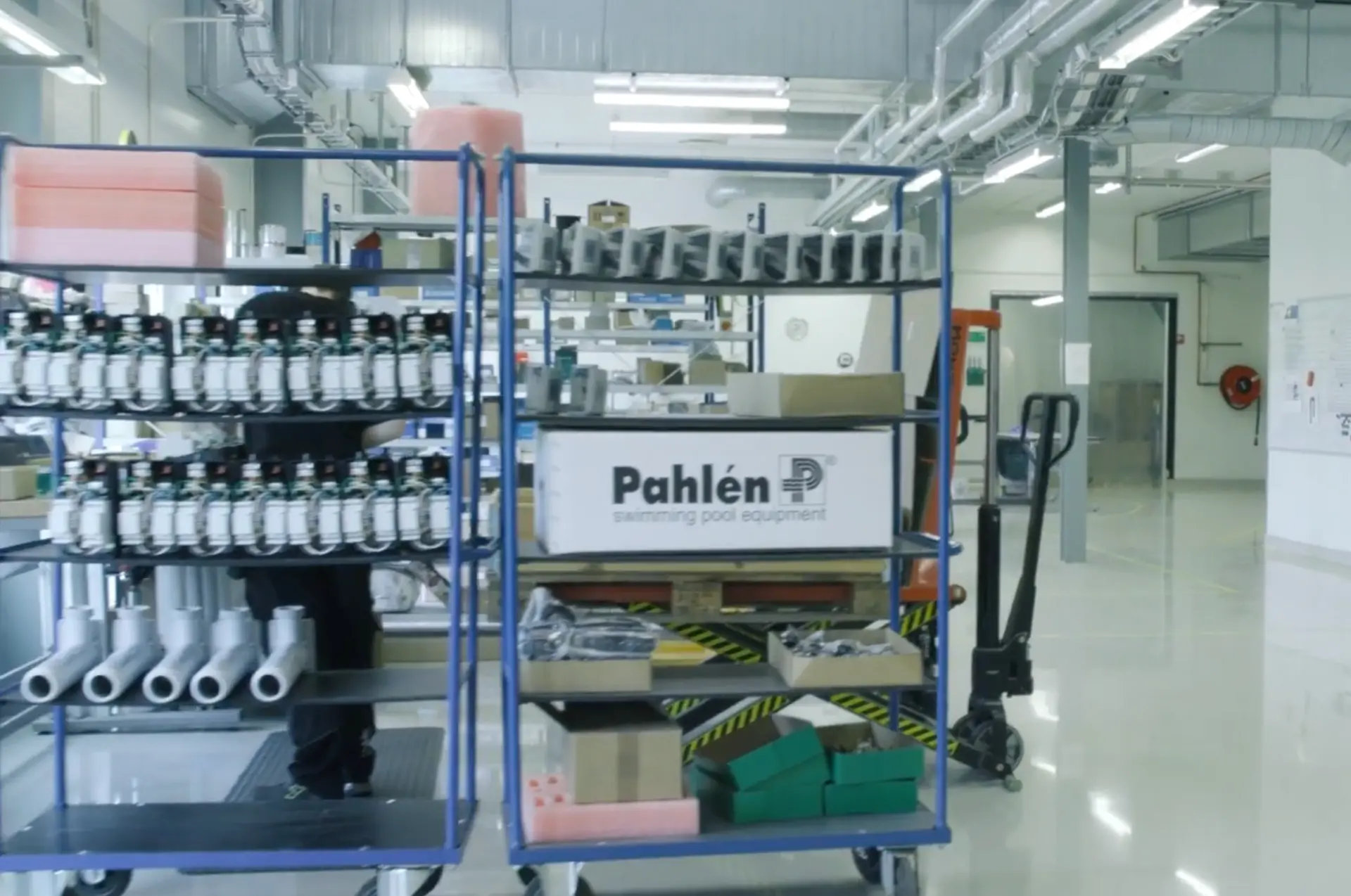

Made where it is designed
Since 1967
Pahlén has built equipment for pools and spas for close to sixty years.
Own design, own manufacturing

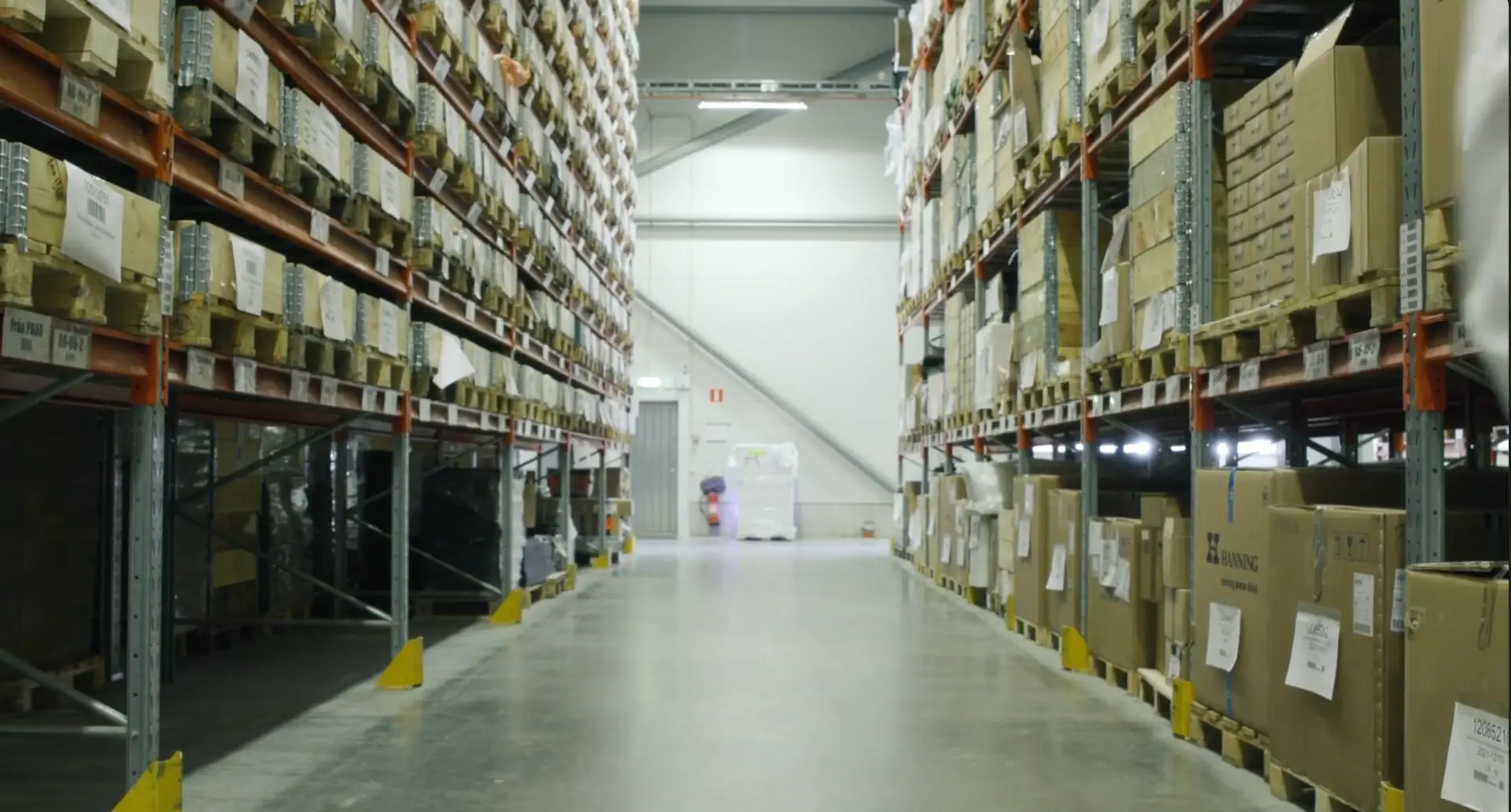

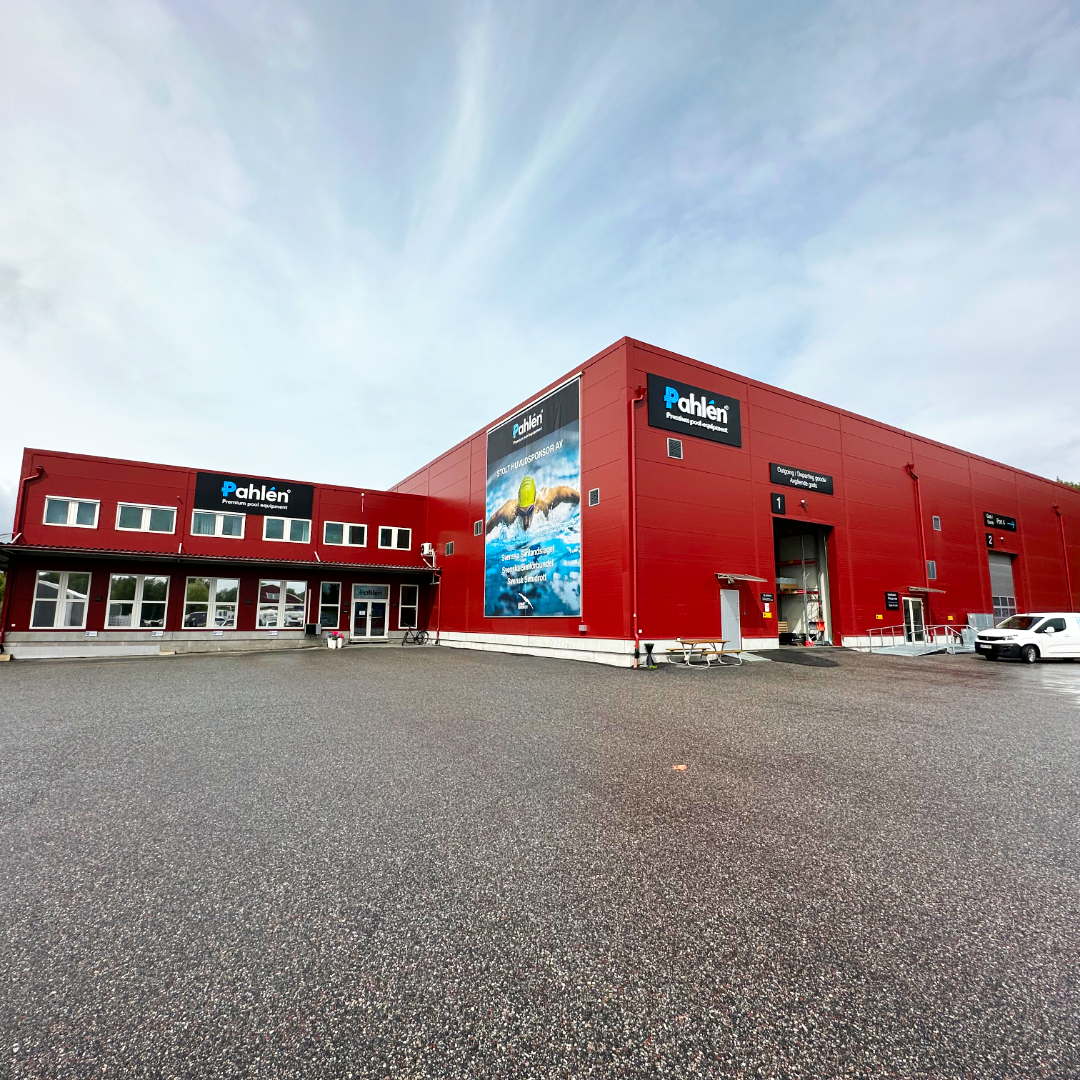

Developed and produced in Upplands Väsby, outside Stockholm. Not sourced and rebadged.
Materials chosen for water
Stainless steel and titanium where the water is hard on the equipment. The material is the reason the equipment lasts.
Built for public pools as well as private
The same range serves small private pools and large public installations. Equipment specified for public use has to survive conditions a spa never sees.
A component designed into your model has to outlive several product generations. So does the supplier.
A spa that is worth more
Charge more for the same spa
A spa built from components you chose, with your own app on it, is a different product from one assembled around a generic controller.
Own the customer relationship
With your own brand on the app, your name is in their hand every day.
Fewer warranty visits
Read the fault before you send anyone.
What stays yours
- Aqua Mini replaces the control pack and its heater — everything else you build stays as it is
- Each device keeps its own protection
- Your customer relationship stays yours
Be among the first
The planning for your next models starts now.
Design-in happens early
A spa model is specified long before it is built. The manufacturers choosing components for their next generation are deciding now.
Tested before series production
Mapping, proposal and a test unit on a real spa — done before your series starts, not after.
First in line
The earliest partners get their models configured first.

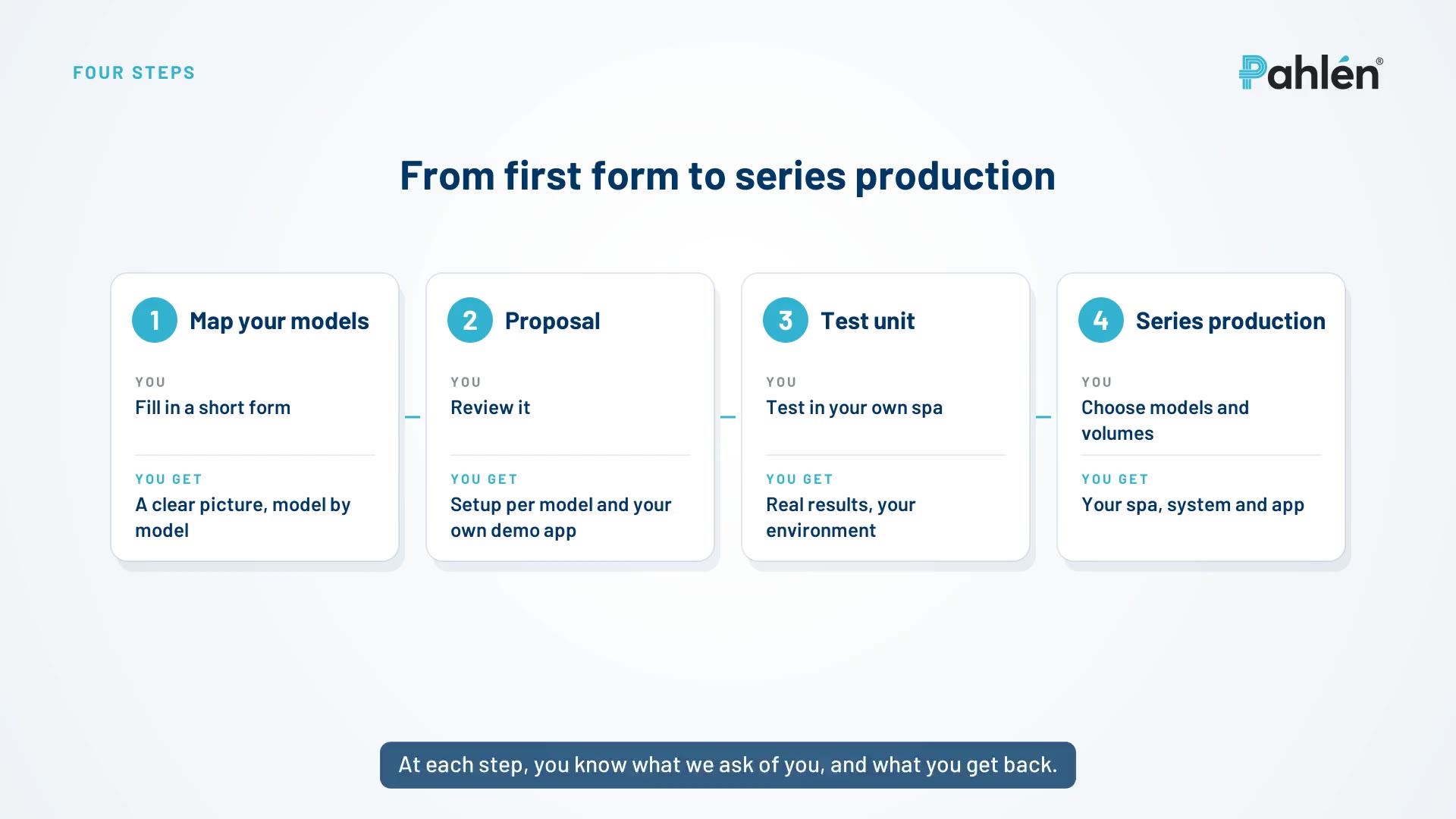

How to start
Four steps. At each step you know what we ask of you, and what you get back.
- 01
Map your models
- You
- Fill in the mapping form below. For each function, keep what you already use or choose Pahlén. About twenty minutes, no commitment.
- You get
- A clear picture of the switch, model by model.
- 02
Proposal
- You
- Review our proposal.
- You get
- A component setup for each of your models, and a demo app that carries your brand — your spa in your own app, before you decide anything.
- 03
Test unit
- You
- Order a test unit and connect it to one of your spas.
- You get
- Aqua Mini, a gateway, a temperature sensor and a test app, configured for your model. You decide on real results, in your own environment.
- 04
Series production
- You
- When the test is approved, choose the models and the volumes.
- You get
- Aqua Mini built in Pahlén's own factory in Sweden, in the quantities your models need. Your spas go to market with your own system and your own app.
Tell us about your spas
The heater is given. For everything else, pick Pahlén's product or tell us what you already use. We come back with a proposal and a demo app with your brand on it.
